Multi Power Device Analyzer

MPD-600 Multi-PD Evaluating PSE

A unique PoE Switch (PSE) designed specifically to qualify Powered Device interoperability in all connection environments. MPD-600 is the most demanding PSE a PD will ever encounter.

IEEE 802.3at & 802.3bt PD´s

  • Type-1 (≤13W) PD’s
  • Type-2 (≤25.5W) PD’s
  • Type-3 (≤51W) PD’s
  • Type-4 (≤71.3W)

Key features

  • Evaluate Up To 6 PDs Simultaneously (Class 0 – 8)
  • Plug’n Test: Connect Any PD and Testing Automatically Begins
  • Simulate Long, Medium, and Short Length Network Connections
  • Automatically Detect Inrush, Overload, Transient, and MPS Violations
  • Group Interop Test: Evaluate Power Demotion, Signature Validity, and Power Loading Compliance on Up To 6 PDs Concurrently
  • Over 480W Total PD Power Capacity (> 80W per port)
  • Diagnostic Test: Troubleshoot Individual PDs for Detection and Class Signature Values, Min-Max-Average Current and Power Draw with User-Specified Power Policing
  • 10/100/1000Base-T Management and Network Access Ports
  • Capture and Report Network-Assigned IP Addresses to Each PD
  • Powerful Program Development Software API for Windows and Linux

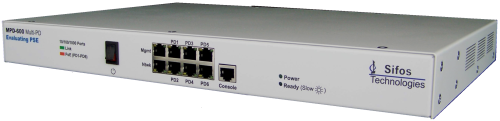

Testinstrument for testing up to 6 PoE Power Devices at the same time

MPD-600 Multi-PD Evaluating PSE

In The Factory

  • Test 6 PD´s together
  • Full voltage Range Testing
  • Monitor Current and Power Draw in Realtime
  • Automation Friendly Software

In The Field

  • Qualify PD´s in Any Application or Environment
  • Troubleshoot Problem PD´s
  • Operate PD´s While Testing Runs on up to 6 PD´s
  • Powerful Interactive GUI

Scale the MPD-600 to your needs!

License options include MPD-600-GUI. A Highly Intuitive MPD Interactive Software Option

    Datasheet MPD-600 Multi-PD

    Download datasheet MPD-600 Multi-PD >

    MPD-600 Software

    MPD-600 includes PowerShell MPD, an interactive programmaing environment bulit on Tcl/Tk. Cutomized test applications for volume QA and manufacturing test are readily produced and debugged using intuitive Tcl command extensions for managing the MPD-600. MPD Interactive is an optional software that provides a GUI based software that provides various interop and diagnostic test features..

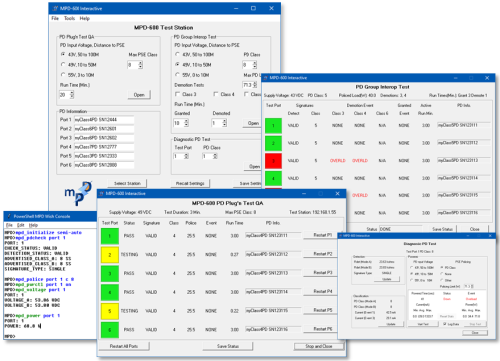

    The Multi PoE Power Device test software includes both a Tcl/Tk based software and an optional GUI based software

    MPD-600 Interactive and PowerShell software

    MPD Interactive

    MPD Interactive Main Menu

    • Describe your PD(s)
    • Pick a test regime
    • Pick a powering voltage (cable distance)
    • Enter a test duration
    • Select power demotion cases
    • Describe non-default (e.g. LLDP) power policing levels
    • Connection and Polarity Management

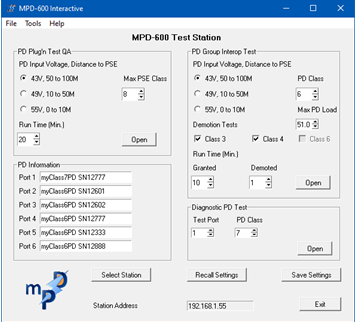

    MPD Interactive is GUI based software uption ot MPD-600

    MPD Interactive Main Menu

    Plug´n Test Menu

    • Plug in any mix of Class 0 – Class 8 PDs
    • Testing starts when menu opens and also when PDs are plugged in
    • Assess PD class
    • Assess start-up load violations (for PD class)
    • Assess steady state load violations (for PD class)
    • Assess transient power violations (for PD class)
    • Assess low power violations (for PD class)
    • Recover assigned IP addresses assigned to each PD
    • Support real-time PD operation as testing runs

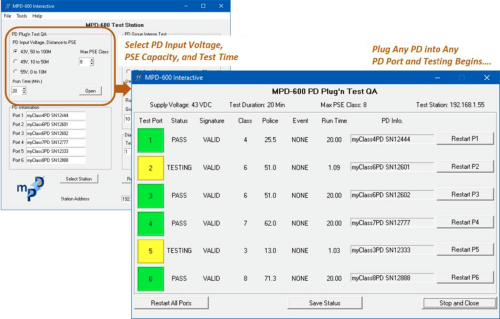

    MPD Interactive include several menus. This is the Plug´n Test Menu

    MPD Interactive Plug´n Test Menu

    MPD Group Interop Test

    • Plug in up to 6 identical PDs
    • Testing runs simultaneously on all PDs
    • Validate PD class
    • Assess all Plug’n Test Parameters in real time (see above)
    • Assess power demoted behaviors of each PD
    • Support power policing for user-specified (e.g. LLDP Request) power levels

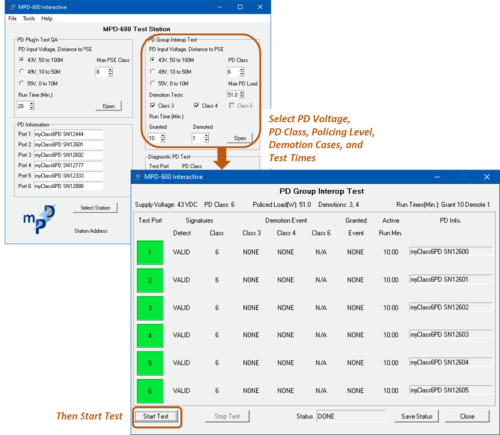

    You can create very efficient group testing with MPD Interactive

    PowerShell PDA Wish Console

    MPD Diagnostic PD Test

    • Specify one PD port
    • Measure and validate PD detection signature (Kohm)
    • Measure and validate PD classification signature (mA)
    • Assess all Plug’n Test Parameters in real time (see above)
    • Specify powering voltage (i.e. cable distance)
    • Police power to PD class or user-specified (e.g. LLDP Request) level
    • Shut off Power Policing to measure power consumption with no shutdowns
    • Report Min/Max power draw and load current

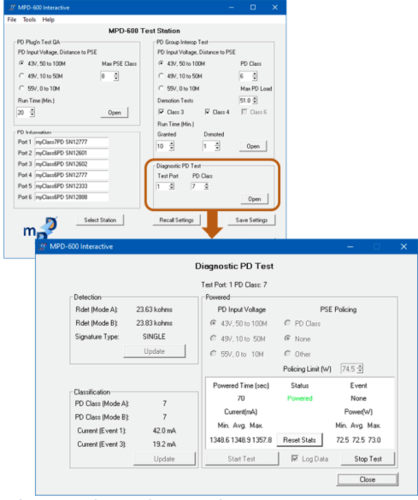

    MPD Diagnostic Test is made for troubleshooting of a single PD

    MPD Diagnostic Test

    PowerShell MPD

    PowerShell MPD let you build your own Test Application. PowerShell MPD could be used for customized Production and/or QA  testing. PowerShell MPDis available both for Windows and Linux platforms.

    PowerShell MPD Script Automation

    • Extensive Interactive Command Language Built Upon Tcl/Tk
    • Supports Interactive Test Script Generation and Debugging
    • Single Command Measurements and Traces
    • High Level Command Access to Test Suites
    • Extensive Documentation and Built-In Command Help
    • PowerShell MPD (Notepad++) Editor
    • Windows binary API library (.DLL)
    • Linux binary API library (.SO)

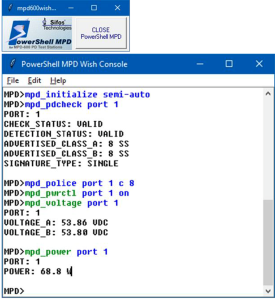

    MPD-600 PowerShell Wish Shell. A command-knowledgeable interactive shell with typical MS features for cut-copy-paste and text editing

    PowerShell MPD – Wish Shell

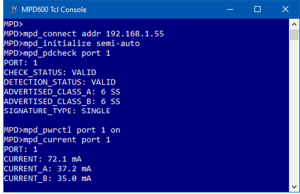

    Multi Power Device Tcl Shell let you build your own Test Script based on either a Windows or a Linux Platform

    PowerShell MPD – Tcl Shell

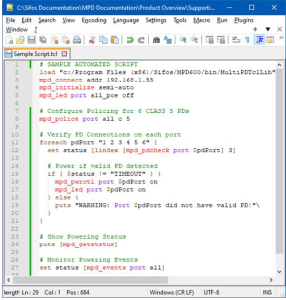

    The Powershell Script Editor is very useful for Qualilty Assurance and Production testing

    PowerShell MPD Script Editor

    Alternative Programming Languages

    MPD-600 software is designed to support any programming environment under Microsoft Windows or Linux that can import binary libraries such as Windows (.dll) or Linux (.so) binaries. Equivalent command sets available to PowerShell MPD are accessible using these binary libraries to other programming languages including C, C++, Visual Basic, etc. PowerShell MPD commands are also available to Python using the tkinter tool.
